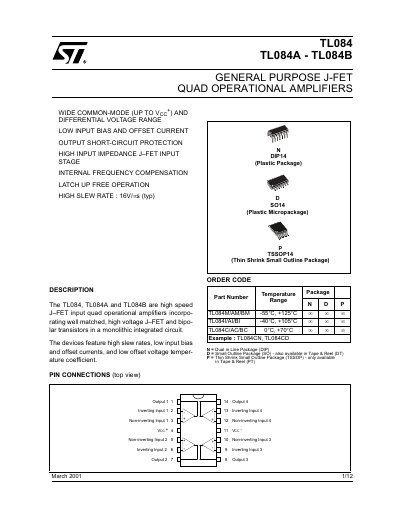

TL084, TL084A and TL084B are high speed J–FET input quad operational amplifiers incorporating well matched, high voltage J–FET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low input bias and offset currents, and low offset voltage temperature coefficient.
The TL084, TL084A and TL084B are high‑speed J‑FET input quad operational amplifiers offered by STMicroelectronics. They feature low input bias and offset currents, high slew rate, and wide common‑mode voltage range, making them suitable for general‑purpose analog signal processing.
The document lists absolute maximum ratings, detailed electrical characteristics, typical application circuits, and mechanical data for DIP, SO, and TSSOP packages. It also includes graphs of performance versus temperature, frequency, and supply voltage, as well as pin‑out diagrams and package dimensions.
| Slew Rate | 16 V/µs (typ) |
|---|
The typical slew rate is 16 V/µs.
