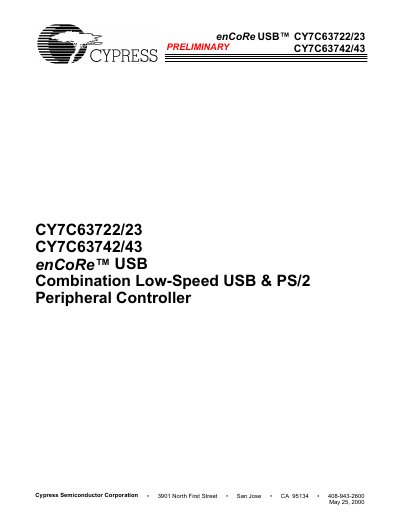

CY7C63722/23 CY7C63742/43 is an enCoRe™ USB combination product that integrates low-speed USB and PS/2 peripheral controller. This document describes the features and functions of this product.
The enCoRe™ USB family combines low‑speed USB and PS/2 interfaces in a single 8‑bit RISC microcontroller. The CY7C63722/23 and CY7C63742/43 devices integrate an internal 6 MHz oscillator, a 3.3 V regulator for the USB pull‑up resistor, and configurable GPIO pins, eliminating the need for external components when switching between USB and PS/2 modes.
The devices are offered in 18‑pin PDIP (CY7C63722/23) and 24‑pin SOIC/PDIP (CY7C63742/43) packages, with 6 KB or 8 KB of EPROM, 256 bytes of RAM, up to 16 GPIO pins (50 mA per pin), a 12‑bit free‑running timer, capture timers, and full USB device support (one address, three endpoints).
| Operating Voltage | 4.0 V to 5.5 VDC |
|---|---|
| Operating Temperature | 0 °C to 70 °C |
| GPIO Drive Capability | Up to 50 mA sink per pin |
| EPROM Size | 6 KB (CY7C63722/23) or 8 KB (CY7C63742/43) |
| RAM | 256 bytes |
| CPU Clock | 12 MHz internal clock |
| USB Endpoints | 1 device address, 3 data endpoints |
| Package Types | 18‑pin PDIP (CY7C63722/23), 24‑pin SOIC/PDIP (CY7C63742/43) |
The devices operate from 4.0 V to 5.5 VDC.
