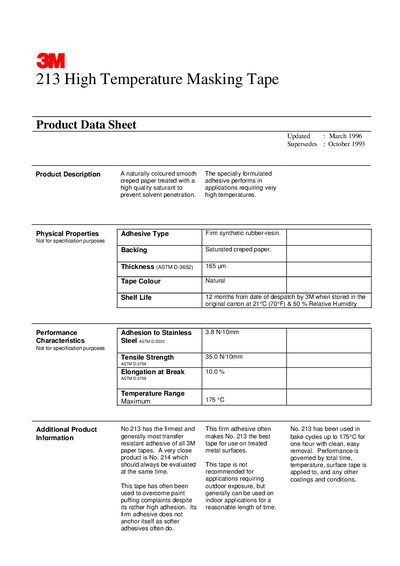

213 High Temperature Masking Tape Product Data Sheet. This tape has a very high adhesion and is suitable for applications requiring very high temperatures.
The 3M 213 High Temperature Masking Tape is a naturally coloured, smooth creped paper tape treated with a high‑quality saturant to prevent solvent penetration. Its specially formulated adhesive is designed for applications requiring very high temperatures, making it suitable for bake cycles up to 175 °C.
The sheet lists physical properties such as a 165 µm thickness, natural colour, and a 12‑month shelf life when stored properly. Performance data include adhesion to stainless steel (3.8 N/10 mm), tensile strength (35 N/10 mm), and elongation at break (10 %). Application techniques recommend clean, dry surfaces and an ideal application temperature of 21 °C to 38 °C.
| Adhesive Type | Firm synthetic rubber‑resin |
|---|---|
| Backing | Saturated creped paper |
| Thickness (ASTM D‑3652) | 165 µm |
| Tape Colour | Natural |
| Shelf Life | 12 months from date of despatch when stored at 21 °C & 50 % RH |
| Tensile Strength | 35.0 N/10 mm (ASTM D‑3759) |
| Elongation at Break | 10.0 % (ASTM D‑3759) |
| Maximum Temperature | 175 °C |
| Ideal Application Temperature Range | 21 °C to 38 °C (70 °F to 100 °F) |
The tape can be used up to a maximum temperature of 175 °C.
The ideal application temperature range is 21 °C to 38 °C (70 °F to 100 °F).
The tape has a shelf life of 12 months when stored in its original carton at 21 °C and 50 % relative humidity.
Surfaces should be clean, dry, and well unified; a typical cleaning solvent is isopropyl alcohol and water.
