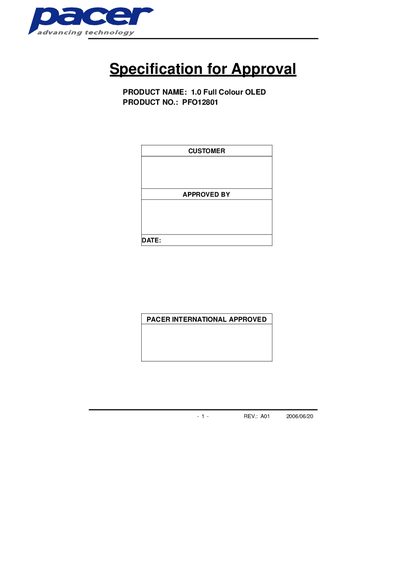

This document is a specification for approval of the product 1.0 Full Colour OLED. It includes information about the scope, warranty, features, mechanical data, maximum rating, electrical characteristics, interface, power on / off sequence & application circuit, reliability test conditions, external dimensions, packing specification, etc.
This specification defines the general provisions and quality requirements for the 1.0 Full Colour OLED display cells supplied by Pacer Display. It includes warranty terms, mechanical data, maximum ratings, and detailed electrical and electro‑optical characteristics.
Key features include a 1.0‑inch diagonal OLED panel with 96×64 dot matrix, 65k full‑color depth, 500:1 contrast, 160° viewing angle, 10 µs response time, and operating temperature range of –40 °C to 70 °C. The document also provides interface pin assignments, power‑on/off sequences, and packing specifications.
| Panel Size | 24.8 mm × 22.42 mm |
|---|---|
| Panel Thickness | 1.45 mm + 0.1 mm |
| Module Size | 24.8 mm × 30.22 mm × 1.45 mm |
| Diagonal Size | 1.0 inch |
| Module Weight | 1.69 g ±10 % |
| Supply Voltage (Vcc) | -0.3 V to 3.5 V |
| Supply Voltage (Vdd) | 9 V to 13.5 V |
| Operating Temperature | -40 °C to 70 °C |
| Storage Temperature | -40 °C to 85 °C |
| Contrast Ratio | 500:1 |
| Viewing Angle | 160 degrees |
| Response Time | 10 µs |
| Luminance (Normal mode) | 80 cd/m² to 100 cd/m² |
| Power Consumption (Normal mode) | 208 mW to 234 mW |
| Dot Matrix | 96 × 64 (3‑bit colour) |
| Color Depth | 65 k full colors |
The product is warranted for twelve (12) months from the shipping date.
The OLED panel can operate from –40 °C to 70 °C.
The display provides a contrast ratio of 500:1.
The panel has a response time of 10 µs.
