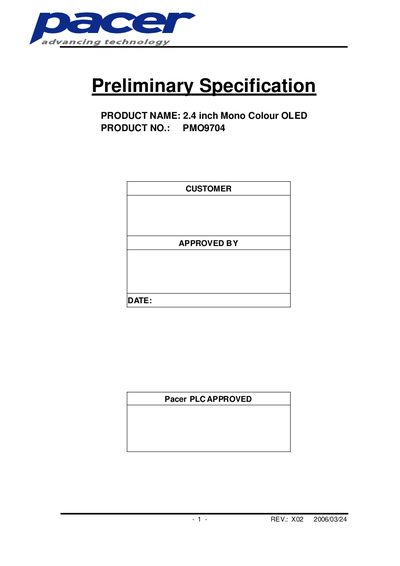

This document is the preliminary specification for the 2.4 inch Mono Colour OLED product. It includes product features, appearance size, maximum ratings, electrical characteristics, interface, application circuit, reliability test conditions, external dimensions, and packing specification.
This specification defines the general provisions, quality requirements and technical data for the Pacer 2.4 inch mono‑colour OLED display (product no. PM0O9704). It includes mechanical dimensions, maximum ratings, electrical and electro‑optical characteristics, interface details and reliability test conditions.
The document also outlines warranty terms (12 months from shipping) and handling precautions such as residue‑image prevention. It serves as the primary reference for designers and integrators using this OLED module.
| Panel Size | 65.5 mm × 40.0 mm |
|---|---|
| Panel Thickness | 2.05 mm |
| Dot Matrix | 128 × 64 |
| Dot Size | 0.4 mm × 0.4 mm |
| Aperture Rate | 87 % |
| Supply Voltage (Vpp) | -0.3 V to 3.5 V |
| Supply Voltage (V) | 1.8 V to 6 V |
| Operating Temperature | -40 °C to 85 °C |
| Normal Mode Current | 138 mA |
| Standby Mode Current | 9 mA |
| Contrast Ratio | 500:1 |
| Viewing Angle | 160 ° |
| Response Time | 10 µs |
The operating temperature range is –40 °C to 85 °C.
The display has a dark‑room contrast ratio of 500:1.
The panel thickness is specified as 2.05 mm (±0.1 mm).
