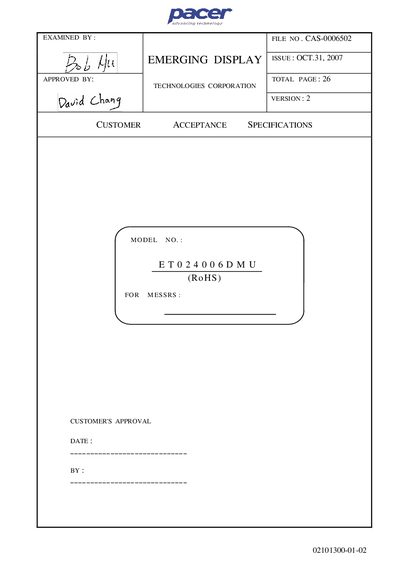

This document is a technical specification for the E T 0 2 4 0 0 6 D M U product
The ET024006DMU is a 240 × 320 dot matrix TFT transmissive LCD module with a white LED backlight. It complies with RoHS requirements and provides detailed mechanical, electrical and timing characteristics for integration into controller/driver systems.
The document lists absolute maximum ratings, environmental limits, interface signal definitions, power supply requirements and inspection criteria, along with safety and handling guidelines for reliable operation.
| Display resolution | 240 W × 320 H dots |
|---|---|
| Module size (without FPC) | 42.72 mm × 60.26 mm × 3 mm |
| LCD size | 36.72 mm × 48.96 mm |
| Dot size | 0.051 mm × 0.153 mm |
| Pixel size | 0.153 mm × 0.153 mm |
| LCD type | TFT, transmissive |
| Color depth | 262K (18‑bit) |
| Backlight LED color | White |
| LED backlight forward current | 90 mA |
| LED backlight reverse voltage | 5 V |
| LED backlight power dissipation | 324 mW |
| Operating temperature range | -20 °C to 70 °C |
The module accepts an input voltage from –0.3 V to +3.3 V.
Always wear an ESD strap, use a grounded soldering iron, and keep the module grounded during installation.
