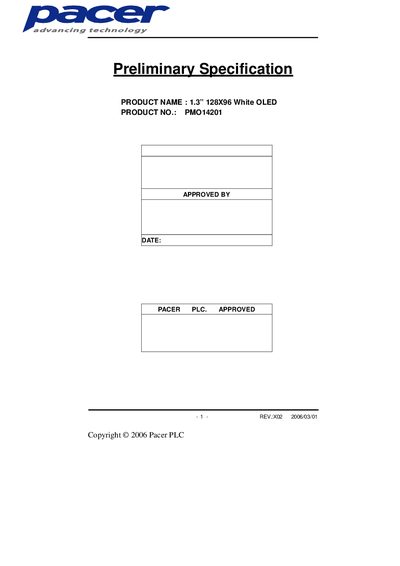

This document is the technical specification manual of 1.3 inch 128X96 white OLED, which mainly introduces the product features and characteristics, such as appearance size, maximum voltage, current, etc.
This manual defines the general provisions, quality requirements, and technical specifications for the Pacer PMO14201 OLED display module. It includes mechanical data, electrical and electro‑optical characteristics, interface details, and warranty information.
The document also provides application circuit examples, power‑on/off sequences, and reliability test conditions to help designers integrate the display into their products.
| Resolution | 128 × 96 pixels |
|---|---|
| Diagonal Size | 1.3 inch |
| Panel Thickness | 1.65 mm |
| Supply Voltage (Vop) | 0.3 – 3.5 V (Ta = 25°C) |
| Supply Voltage (Vcc) | 8 – 16 V (Ta = 25°C) |
| Operating Temperature | -40 °C to 70 °C |
| Contrast Ratio | 500:1 |
| Viewing Angle | 160° |
| Response Time | 10 µs |
| Power Consumption (Normal Mode) | 360 mW |
The display operates from –40 °C to 70 °C.
The panel thickness is 1.65 mm.
The display has a contrast ratio of 500:1.
