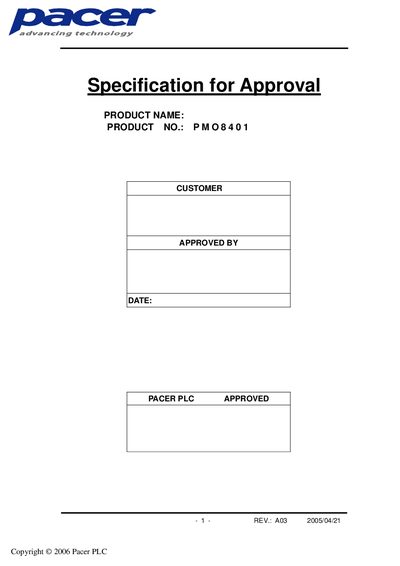

This document is about the specification and quality requirements for a display cell manufactured by Pacer. The product features two area color small molecular organic light-emitting diodes.
This document defines the general provisions and quality requirements for the Pacer PMO8401 OLED display module. It includes features such as a 128 × 64 dot matrix, dual‑color organic LEDs, thin 2.05 mm profile, and wide viewing angle.
The specification provides detailed mechanical data, maximum ratings, DC electrical characteristics, electro‑optical performance, interface diagrams, power‑on/off sequences, reliability test conditions, and packaging information.
| Panel Size | 33.0 mm × 23.0 mm |
|---|---|
| Panel Thickness | 2.05 mm |
| Supply Voltage (Vcc) | 8 V – 16 V |
| Operating Temperature | -20 °C to 70 °C |
| Normal Mode Current | 7 mA – 9 mA |
| Normal Luminance | 40 cd/m² – 45 cd/m² |
| Contrast Ratio | 100:1 |
| Viewing Angle | 160° |
The module has a dot matrix of 128 × 64 dots.
It operates from –20 °C up to 70 °C.
The Vcc supply voltage is 8 V to 16 V.
