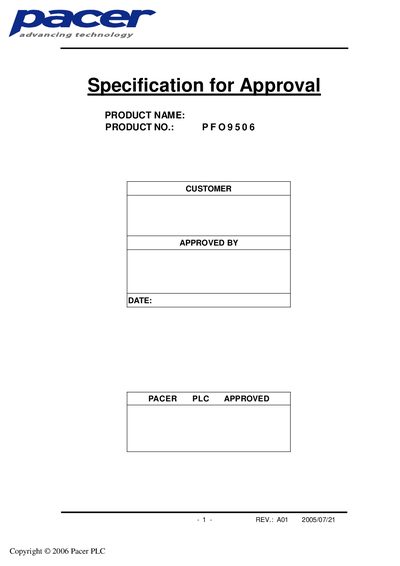

This document is the product specification of Pacer PLC, which includes information such as the product name, model, features, mechanical data, maximum ratings, electrical characteristics, interface, and reliability test conditions.
This specification defines the general provisions and quality requirements for the Pacer PFO9506 display cell. It includes the scope, a twelve‑month warranty from the shipping date, and the product’s key features such as a small‑molecule OLED, 262 K/65 K color depth, 128 × 128 resolution, 10 µs response time, 500:1 contrast and a wide viewing angle.
The document provides detailed mechanical data (panel size 36 × 36 mm, thickness 2.05 mm, module weight 5.70 g), maximum electrical ratings (Vpp 3.5 V, Vcc 18 V), operating temperature range –20 °C to 70 °C, and electro‑optical characteristics (luminance, CIE coordinates, power consumption). It also contains interface diagrams, application circuit recommendations, reliability test conditions and packing specifications.
| Panel resolution | 128 × 128 pixels |
|---|---|
| Dot size | 0.045 × 0.19 mm |
| Dot pitch | 0.07 × 0.21 mm |
| Aperture rate | 58 % |
| Active area | 26.855 × 26.86 mm |
| Panel size | 36.0 × 36.0 mm |
| Panel thickness | 2.05 mm |
| Module size | 36.0 × 58.5 × 2.05 mm |
| Diagonal size | 1.5 inch |
| Module weight | 5.70 g |
| Supply voltage (Vpp) | 3.5 V |
| Supply voltage (Vcc) | 18 V |
| Operating temperature | -20 °C to 70 °C |
| Storage temperature | -40 °C to 85 °C |
| Humidity | 85 % |
| Contrast (dark room) | 500:1 |
| Viewing angle | 160 degrees |
| Response time | 10 µs |
Pacer warrants the product for twelve months from the shipping date.
The device operates from –20 °C to 70 °C.
The panel resolution is 128 × 128 pixels.
The response time is 10 µs.
