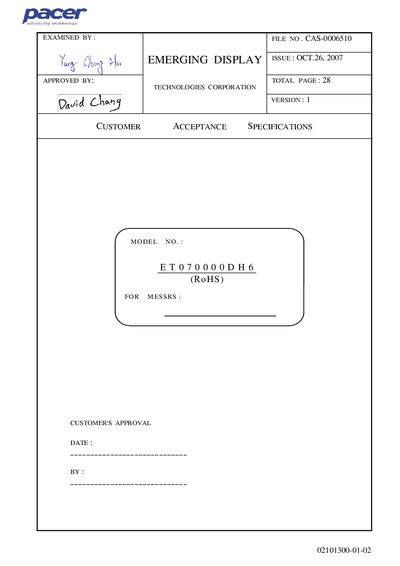

This document is about the technical specifications of the E T 0 7 0 0 0 0 D H 6 product
The ETO70000DH6 is a TFT transmissive, anti‑glare LCD module with a 800 × 480 dot matrix and white LED backlight. It complies with RoHS requirements and includes detailed mechanical, electrical, and optical specifications.
The manual covers absolute maximum ratings, power supply requirements, timing and sync signal characteristics, inspection criteria, and safety precautions for handling, soldering, and operating the display. It also outlines testing procedures and recommended operating conditions.
| Display resolution | 800 × 480 dots (RGB) |
|---|---|
| LCD type | TFT, transmissive, anti‑glare |
| Backlight color | White LED |
| Power supply voltage (VCC) | 3.3 V |
| Operating temperature range | -30 °C to 80 °C |
| Maximum input voltage | -0.3 V to +0.3 V relative to VCC |
The ambient temperature range is –30 °C to 80 °C.
The module uses a 3.3 V VCC power supply.
It has an 800‑by‑480 dot matrix (800 × 480 RGB dots).
Use a grounded soldering iron, avoid excessive heat and time, and wear static‑protected clothing.
