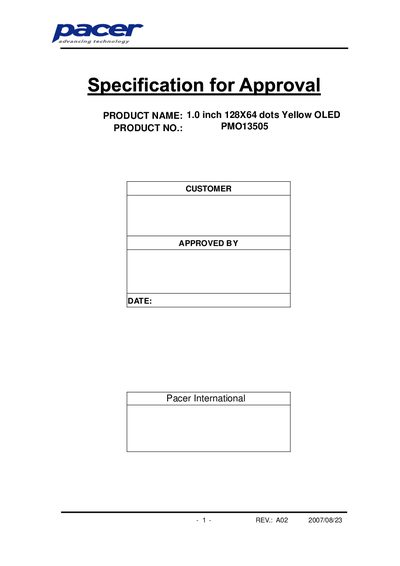

1.0 inch 128x64 dots Yellow OLED display cell datasheet
The PMO13505 is a 1.0‑inch yellow OLED module featuring a 128 × 64 dot matrix, 2000:1 contrast and a wide 160° viewing angle. It is designed for compact mechanisms with a panel thickness of about 1.61 mm and operates over a temperature range of –40 °C to 70 °C.
The document provides full mechanical data (panel size 29.6 × 19.7 mm, aperture rate 79 %), electrical ratings (VCC 8‑16 V, typical supply current 9 mA), electro‑optical characteristics (normal luminance 90 cd/m², response time 10 µs) and warranty terms (12‑month warranty).
| Panel Size | 29.6 × 19.7 mm |
|---|---|
| Panel Thickness | 1.61 mm |
| Dot Matrix | 128 × 64 dots |
| Aperture Rate | 79 % |
| Supply Voltage (VCC) | 8‑16 V |
| Operating Temperature | -40 °C to 70 °C |
| Contrast Ratio | 2000:1 |
| Viewing Angle | 160° |
| Response Time | 10 µs |
| Normal Mode Power Consumption | 84‑108 mW |
| Normal Luminance | 90 cd/m² |
RiTdisplay warrants the product for twelve months from the shipping date.
The display operates from –40 °C to 70 °C.
The panel provides a contrast ratio of 2000:1.
The display offers a wide viewing angle of 160 degrees.
