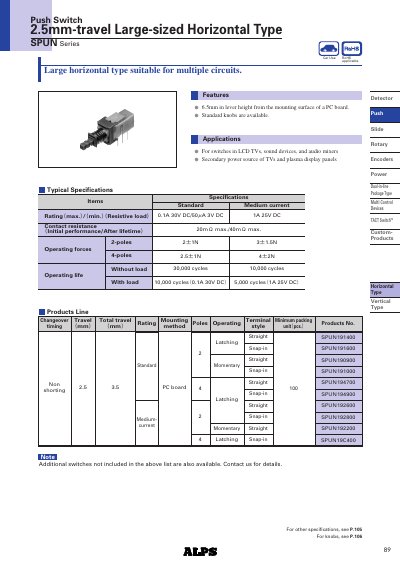

TACT Switch TM SPUN Series 2.5 mm Travel Horizontal Switch Datasheet
This document describes the SPUN series of large‑sized horizontal tactile switches with a 2.5 mm travel and 3.5 mm total travel. It lists the electrical ratings such as resistive load, contact resistance, and voltage limits, as well as mechanical characteristics like mounting height and terminal styles.
The datasheet also covers durability data (operating life cycles with and without load), environmental limits (temperature range, humidity), and optional accessories such as knob styles. Applications include LCD TVs, audio equipment, and automotive use. This manual is written in Chinese.
ALPS 5MM-TRAVEL specifications
| Travel distance | 2.5 mm |
|---|---|
| Total travel | 3.5 mm |
| Resistive load rating | 0.1 A / 30 V DC |
| Maximum contact resistance | 1 mΩ |
| Operating life without load | 30,000 cycles |
| Operating life with load | 10,000 cycles |
| Mounting height | 6.5 mm |
| Operating temperature range | -40 °C to 85 °C |
Source: TACT Switch TM SPUN Series 2.5 mm Travel Horizontal Switch Datasheet
