3M™ Shielded Compact Ribbon (SCR) Connectors Boardmount Straight Plug 361 Series is a connector produced by 3M Company. It has good insulation performance and can withstand 1A current and 150V voltage. The working temperature range is -55°C to +85°C.

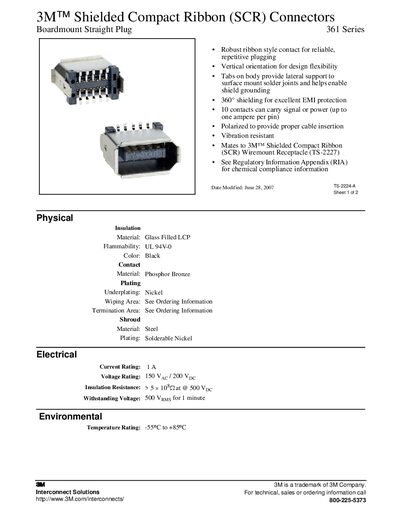

The 3M 361 Series Shielded Compact Ribbon (SCR) Connectors are board‑mount straight plug devices offering robust ribbon‑style contacts for reliable, repetitive plugging. They feature a vertical orientation for design flexibility, lateral tabs for solder joint support, and 360° shielding for EMI protection. Each connector provides up to ten contacts that can carry signal or power up to one ampere per pin and is polarized for proper cable insertion.
Physical specifications include a glass‑filled LCP insulation, UL 94V‑0 flammability rating, and a black shroud made of steel with solderable nickel plating. Electrical ratings are 1 A current, 150 Vac/200 Vdc voltage, >5 × 10⁶ Ω insulation resistance at 500 V, and a -55 °C to +85 °C operating temperature range. The product complies with RoHS directives, with specific exemptions noted for lead in certain areas.
| Insulation Material | Glass Filled LCP |
|---|---|
| Flammability Rating | UL 94V-0 |
| Color | Black |
| Contact Material | Phosphor Bronze |
| Contact Plating | Nickel (underplating) |
| Current Rating | 1 A per pin |
| Voltage Rating | 150 Vac / 200 Vdc |
| Insulation Resistance | > 5 × 10⁶ Ω at 500 V |
| Withstanding Voltage | 500 V for 1 minute |
| Operating Temperature Range | -55 °C to +85 °C |
| Number of Contacts | 10 |
Each contact is rated for 1 A of current.
The connector is rated for 150 Vac and 200 Vdc.
Yes, the product is RoHS compliant under Directive 2005/95/EC, with specific exemptions noted.
It can operate from –55 °C up to +85 °C.
