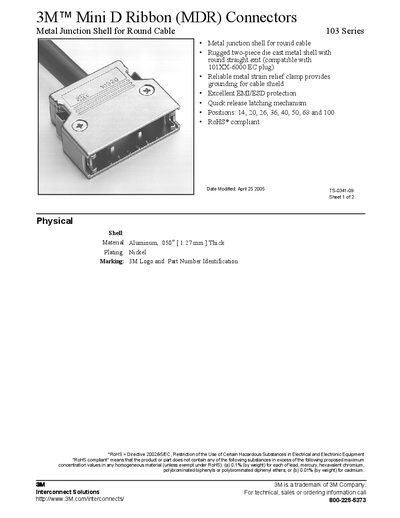

This document describes the features of 3M™ Mini D Ribbon (MDR) Connectors Metal Junction Shell for Round Cable 103 series, including its physical characteristics, RoHS compliance, material, marking, applicable positions, etc.
The 3M 103 Series Mini D Ribbon (MDR) Connectors feature a rugged two‑piece die‑cast metal shell with a round straight exit, metal strain‑relief clamp for grounding, and a quick‑release latching mechanism. They are available in multiple positions (14, 20, 26, 36, 40, 50, 68, 100) and comply with RoHS directives.
The package includes a cable clamp, screws, metal shell halves, and metal latches. Detailed contact dimensions and ordering numbers are provided, along with a disclaimer and warranty information.
| Shell material | Aluminum |
|---|---|
| Shell thickness | 0.050 in (1.27 mm) |
| Shell plating | Nickel |
| Available positions | 14, 20, 26, 36, 40, 50, 68, 100 |
| RoHS compliance | Compliant with Directive 2002/95/EC |
| Ordering part number | 103XX-A200-00 |
The connectors are offered in positions 14, 20, 26, 36, 40, 50, 68, and 100.
Yes, it is RoHS compliant according to Directive 2002/95/EC.
The shell is made of aluminum and is 0.050 inches (1.27 mm) thick.
The ordering part number is 103XX‑A200‑00.
