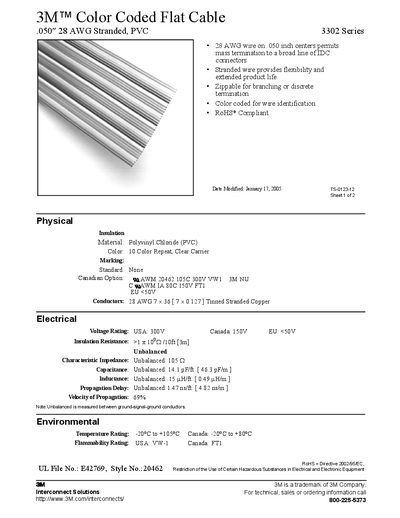

3M™ Color Coded Flat Cable .050″ 28 AWG Stranded, PVC 3302 Series features: 28 AWG wire on .050 inch centers permits mass termination to a broad line of IDC connectors; stranded wire provides flexibility and extended product life; zippable for branching or discrete termination; color coded for wire identification; RoHS* Compliant
The 3M 3302 Series is a 0.050‑inch center‑to‑center, 28 AWG stranded flat cable with a clear PVC carrier and ten‑color repeat for easy identification. It is designed for mass termination to a broad range of IDC connectors, offering flexibility, extended product life, and RoHS compliance.
The datasheet lists electrical ratings (300 V USA, 150 V Canada), temperature limits (‑20 °C to +105 °C USA, ‑20 °C to +80 °C Canada), and detailed physical dimensions for various conductor counts. Ordering information, including part numbers and standard lengths, is also provided.
| Conductor size | 28 AWG 7 × 0.127 mm tinned stranded copper |
|---|---|
| Voltage rating | USA 300 V, Canada 150 V |
| Temperature rating | -20 °C to +105 °C (USA), -20 °C to +80 °C (Canada) |
| Insulation material | Polyvinyl Chloride (PVC) |
| Capacitance (unbalanced) | 14.1 pF/ft |
| Inductance (unbalanced) | 0.15 µH/ft |
| Propagation delay (unbalanced) | 1.47 ns/ft |
| Flammability rating | USA VW‑1, Canada FT1 |
| RoHS compliance | Yes |
The cable is rated for 300 V in the USA and 150 V in Canada.
It is rated from –20 °C up to +105 °C in the USA and up to +80 °C in Canada.
Yes, the cable meets the RoHS Directive 2002/95/EC requirements.
