This document describes the features and characteristics of the 3M™ Heel Grounder - Cup Style Foot Grounder - Economy, including compliance with relevant standards, cost-effective durability, double lifespan, multi-layer sole, and low price.
The 3M Heel Grounder Cup Style is a cost‑effective, durable foot grounder designed to discharge static from a person to ground. It features a double‑life‑span three‑layer sole, an 18‑inch multi‑strand conductive ribbon, and a low‑price construction using computer‑controlled stitching, riveting, die‑cutting, and heat‑cutting.

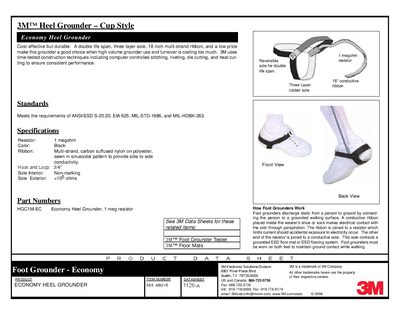

The datasheet lists key specifications such as a 1 MΩ resistor, black color, multi‑strand carbon‑suffused nylon ribbon, and non‑marking interior sole. It also notes compliance with ANSVESD S‑20.20, EIA 625, MIL‑STD‑1686, and MIL‑HDBK‑263 standards.
| Resistor | 1 megohm |
|---|---|
| Color | Black |
| Ribbon | Multi‑strand, carbon suffused nylon on polyester |
| Hook and Loop | 3/4" |
| Sole Interior | Non‑marking |
| Sole Exterior | <10° ohms |
| Part Number | HGC1M‑EG |
Foot grounders discharge static from a person to ground by connecting the person to a grounded walking surface.
It meets the requirements of ANSVESD S‑20.20, EIA 625, MIL‑STD‑1686, and MIL‑HDBK‑263.
The resistor value is 1 megohm.
