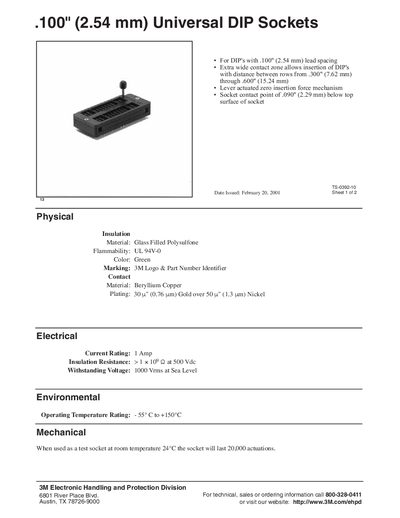

This document describes the 3M .100" (2.54 mm) Universal DIP Sockets, which are designed for DIP packages with .100" lead spacing and feature a lever‑actuated zero insertion force mechanism. It includes physical, electrical, environmental, and mechanical characteristics, as well as detailed dimensions for various contact quantities.
Key data such as current rating, insulation resistance, withstanding voltage, operating temperature range, and ordering part numbers are listed, allowing engineers to select the appropriate socket and obtain technical or sales support from 3M.
| Withstanding Voltage | 1000 Vrms at Sea Level |
|---|---|
| Operating Temperature Rating | -55°C to +150°C |
When used at 24 °C, the socket will last about 20,000 actuations.
It operates from –55 °C up to +150 °C.
Call 800‑328‑0411 or visit the 3M website for technical, sales, or ordering information.
