3M electronic connector TS-0362-09's 10 to 36 pin ZIP strip sockets, with 1 Amp current rating, >1 x 10^9 W insulation resistance, 1000 Vrms voltage withstand and -55°C to +150°C environmental operating temperature rating.

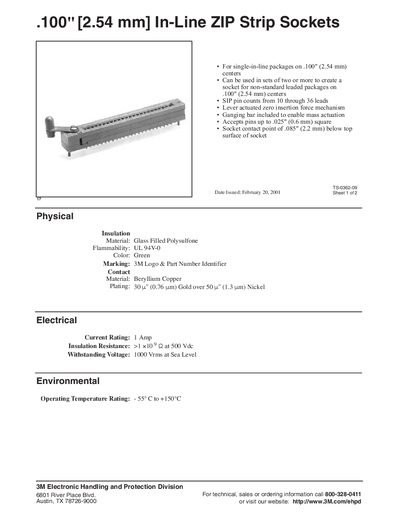

This manual describes 3M's 100" (2.54 mm) in‑line ZIP strip sockets, which are lever‑actuated zero‑insertion‑force devices suitable for single‑in‑line packages. The sockets can be ganged together to create larger arrays and accept pins up to 0.025" (0.6 mm) square.
Key specifications include insulation material, electrical ratings, temperature range, and detailed contact dimensions. Ordering part numbers for various lead counts are listed, and contact information for 3M’s Electronic Handling and Protection Division is provided.
| Insulation Material | Glass Filled Polysulfone |
|---|---|
| Flammability Rating | UL 94V-0 |
| Contact Material | Beryllium Copper |
| Plating | 30 µin (0.76 µm) Gold over 1.3 µin (1.3 µm) Nickel |
| Current Rating | 1 Amp |
| Insulation Resistance | >1 × 10⁹ Ω at 500 Vdc |
| Withstanding Voltage | 1000 Vrms at Sea Level |
| Operating Temperature Range | -55 °C to +150 °C |
| Supported Pin Count | 10 through 36 leads |
| Maximum Pin Size | 0.025" (0.6 mm) square |
The socket is rated for a maximum current of 1 Amp.
It can operate from –55 °C up to +150 °C.
The insulation is made of glass‑filled polysulfone.
The socket supports single‑in‑line packages with 10 to 36 leads.
