3M Polarized Boardmount Socket .100" × .100" Centerbump Polarization with Right Angle Solder Tails 5100 Series is a product of 3M. It has the following features: Glass filled polyester (PBT) insulation material, UL 94V-0 flame retardant rating, gray appearance, copper alloy plating underlayer and U-slot, 2 micron (79 microinch) nickel wiping area, 0.3 micron (12 microinch) gold solder tails, 3M logo, part identification number and orientation triangle mark, 1 ampere current rating, greater than 1 times 109 ohms of insulation resistance at 500 volts direct current voltage, 1000 volts rms sea level withstand voltage, -55 degrees Celsius to 105 degrees Celsius temperature range.
The 3M 5100 Series Polarized Boardmount Socket is a .100" × .100" center‑bump connector with right‑angle solder tails, designed for use with low‑profile shrouded headers. It offers optional keying and RoHS‑compliant versions.

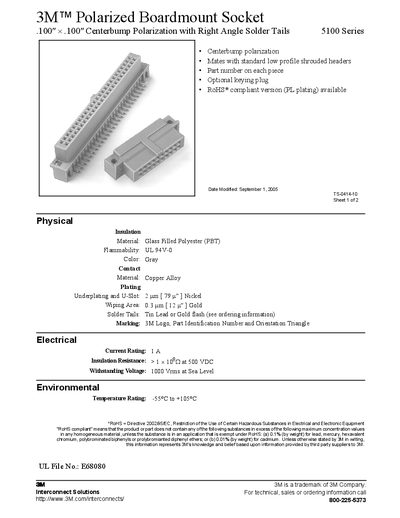

The datasheet lists physical, electrical, and environmental specifications, contact dimensions, and ordering details, along with warranty and disclaimer information.
| Insulation Material | Glass Filled Polyester (PBT) |
|---|---|
| Flammability Rating | UL 94V-0 |
| Color | Gray |
| Contact Material | Copper Alloy |
| Solder Tail Plating | Tin‑lead or Gold flash |
| Current Rating | 1 A |
| Insulation Resistance | > ] x 10°Q at 500 VDC |
| Withstanding Voltage | 1000 Vrms at sea level |
| Temperature Rating | -55 °C to +105 °C |
| RoHS Compliance | Available |
The socket is rated for a continuous current of 1 A.
Solder tails are available with either tin‑lead plating or a gold flash (RoHS‑compliant).
It is rated for temperatures from –55 °C up to +105 °C.
Yes, a RoHS‑compliant version (PL plating) is offered.
