This document introduces 3M's Interconnect Solutions products, including the D Sub EMI Junction Shell. The product provides protection from EMI/ESD, is easy to assemble, and reduces time and labor costs.

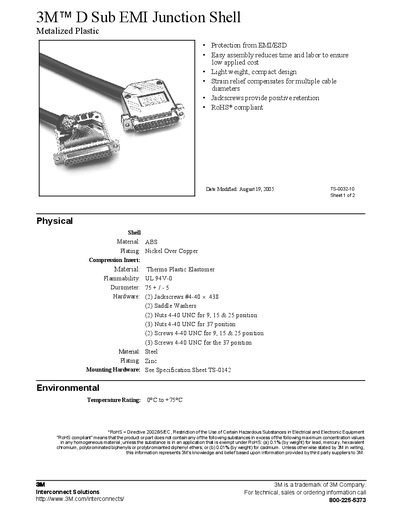

This document describes the 3M D Sub EMI Junction Shell, a metalized plastic backshell designed for EMI/ESD protection. It highlights key features such as lightweight construction, strain relief for multiple cable diameters, and RoHS compliance.
The manual includes physical specifications, environmental ratings, compression‑insert dimensions, and ordering information, along with a warranty notice and contact details for technical or sales support.
| Shell material | ABS |
|---|---|
| Shell plating | Nickel Over Copper |
| Compression insert material | Thermo Plastic Elastomer |
| Flammability rating | UL 94V-0 |
| Operating temperature range | 0°C to +75°C |
| RoHS compliance | Yes |
The shell is rated for temperatures from 0 °C up to +75 °C.
Yes, the product is RoHS compliant.
The shell is made of ABS plastic.
