3M™ Antistatic Grounding Systems include a variety of ground systems, ground wires and wrist straps to meet a wide range of static control needs.

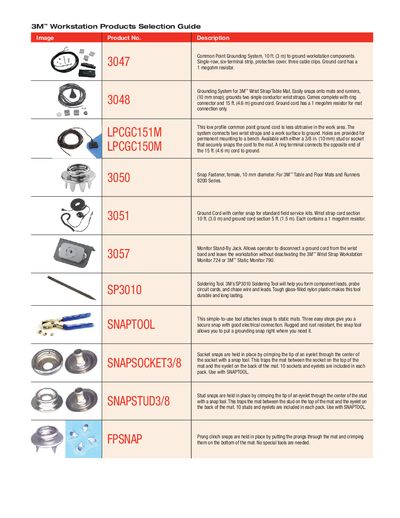

This guide presents 3M's workstation grounding solutions and accessories, providing part numbers, descriptions, and key features for each item. It is intended to help users select the appropriate grounding components for static‑sensitive work environments.
Products covered include common point grounding systems, wrist‑strap grounding kits, snap fasteners, ground cords, monitor stand‑by jacks, soldering tools, and various snap‑on accessories such as socket snaps, stud snaps, and prong clinch snaps.
| Ground cord resistance | 1 megohm |
|---|---|
| Ground cord length (wrist strap) | 10 ft (3 m) |
| Ground cord length (additional section) | 5 ft (1.5 m) |
| Ground cord length (full kit) | 15 ft (4.6 m) |
| Snap size for wrist‑strap mat | 10 mm |
| Stud/socket size | 3/8 in. (10 mm) |
Each ground cord includes a 1 megohm resistor.
The wrist‑strap portion of the ground cord is 10 ft (3 m) long.
A 10 mm snap is used to attach the grounding system to mats and runners.
It can be mounted with either a 3/8 in. (10 mm) stud or a socket that snaps to the mat.
