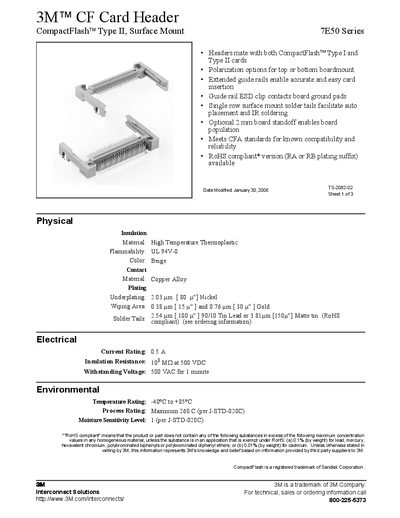

This document describes the 3M™ CF Card Header by 3M Company. The product is a surface mount connector for CompactFlash Type II. It features high temperature thermoplastic insulation material, UL 94V-0 flammability rating, copper alloy contact material with nickel and gold plating, 0.5A current rating, 103 MΩ insulation resistance, 500VAC withstanding voltage, and temperature range of -40°C to +85°C. The product is RoHS compliant.
The 3M CF Card Header is a surface‑mount connector for CompactFlash™ Type I and Type II cards. It offers polarization options, extended guide rails for easy insertion, and optional board standoff. The header meets CFA standards and is available in RoHS‑compliant versions with RA or RB plating suffixes.
Electrical specifications include a 0.5 A current rating, 10³ MΩ insulation resistance at 500 VDC, and a 500 VAC withstanding voltage for 1 minute. Environmental ratings cover –40 °C to +85 °C temperature range, a maximum process temperature of 260 °C, and moisture sensitivity level 1. Ordering information and packaging options are provided, and technical support can be reached at 800‑225‑5373.
| Current Rating | 0.5 A |
|---|---|
| Insulation Resistance | 10³ MΩ at 500 VDC |
| Withstanding Voltage | 500 VAC for 1 minute |
| Temperature Rating | -40 °C to +85 °C |
| Process Rating | Maximum 260 °C (per J‑STD‑020C) |
| Moisture Sensitivity Level | 1 (per J‑STD‑020C) |
| Insulation Material | High Temperature Thermoplastic |
| Flammability | UL 94V-0 |
| Contact Material | Copper Alloy |
| Nickel Underplating | 2.03 µm |
| Gold Wiping Area | 0.38 µm (15 µin) and 0.76 µm (30 µin) |
The CF Card Header is rated for 0.5 A of current.
Yes, versions with the RA or RB plating suffix are RoHS compliant.
You can call 800‑225‑5373 for technical, sales or ordering information, or refer to the Ordering Information section of the datasheet.
