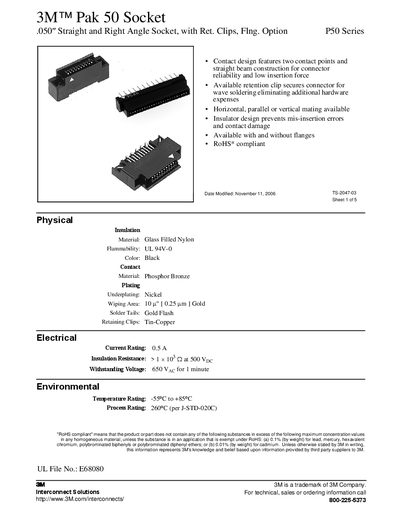

3M™ Pak 50 Socket .050″ Straight and Right Angle Socket, with Ret. Clips, Flng. Option P50 Series is a connector produced by 3M company. It has a two-point contact design and a straight beam structure, which has reliability and low insertion force. The available retaining clip can secure the connector to prevent it from falling off the connector.
The Pak 50 Socket series offers .050" straight and right‑angle connectors with optional retention clips and flange options. Contact design features two contact points and a straight beam construction for reliable insertion and low force, while the insulator design prevents mis‑insertion and contact damage.
Physical specifications include a glass‑filled nylon insulator (UL 94V‑0, black), phosphor‑bronze contacts with nickel underplating, gold wiping area, and tin‑copper retaining clips. Electrical ratings are 0.5 A current, >1 × 10⁹ Ω insulation resistance at 500 VDC, and 650 Vac withstanding voltage for 1 minute. The socket operates from –55 °C to +85 °C and meets RoHS requirements.
| Insulation Material | Glass Filled Nylon |
|---|---|
| Flammability Rating | UL 94V-0 |
| Color | Black |
| Contact Material | Phosphor Bronze |
| Underplating | ~Nickel |
| Wiping Area | 10 w” [0.25 µm] Gold |
| Solder Tails | Gold Flash |
| Retaining Clips Material | Tin‑Copper |
| Current Rating | 0.5 A |
| Insulation Resistance | > 1 × 10⁹ Ω at 500 VDC |
| Withstanding Voltage | 650 Vac for 1 minute |
| Temperature Rating | -55 °C to +85 °C |
| Process Rating | 260 °C (per J‑STD‑020C) |
| RoHS Compliance | Compliant |
The socket is rated for 0.5 A.
Yes, the Pak 50 Socket is RoHS compliant.
The insulation is made of glass‑filled nylon.
It can operate from –55 °C to +85 °C.
