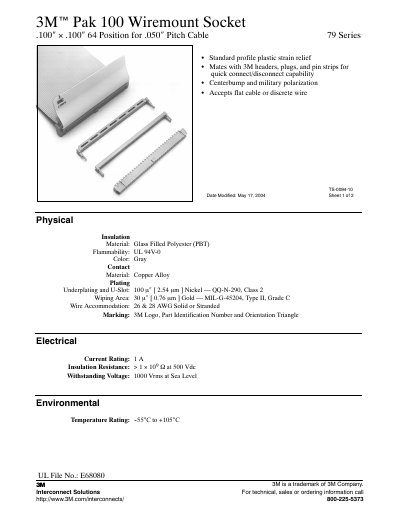

The 3M Pak 100 Wiremount Socket .100″ × .100″ 64 Position for .050″ Pitch Cable 79 Series is a product of 3M company. It supports standard profile plastic strain relief, mates with 3M headers, plugs, and pin strips for quick connect/disconnect capability, supports centerbump and military polarization, accepts flat cable or discrete wire.
The Pak 100 Wiremount Socket is a 64‑position connector designed for .050″ pitch flat‑cable or individual wire applications. It mates with 3M headers, plugs, and pin strips for quick connect/disconnect and features a center bump and military‑style polarization.
Technical details include a glass‑filled polyester (PBT) insulator, UL 94V‑0 flammability, gray color, copper‑alloy plated contacts, 1 A current rating, insulation resistance >1 × 10⁹ Ω at 500 Vdc, and a working temperature range of –55 °C to +105 °C. Optional strain‑relief and keying options are available, and assembly tools are listed for proper installation.
| Number of Positions | 64 |
|---|---|
| Connector Size | .100″× .100″ |
| Pitch | .050″ |
| Insulation Material | Glass Filled Polyester (PBT) |
| Flammability Rating | UL 94V‑0 |
| Color | Gray |
| Contact Material | Copper Alloy Plating |
| Current Rating | 1 A |
| Withstanding Voltage | 1000 Vrms (sea level) |
| Operating Temperature Range | -55 °C to +105 °C |
| Wire Sizes Accepted | 26 AWG & 28 AWG solid or stranded |
The connector is rated for a maximum electrical current of 1 A.
The device can be used from –55 °C up to +105 °C.
The insulation material is glass‑filled polyester (PBT).
