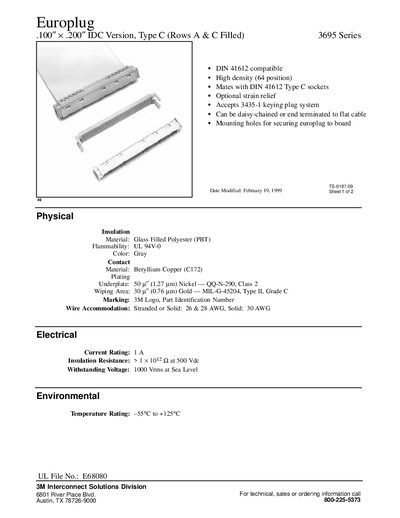

This document describes the features and characteristics of the Europlug .100″ × .200″ IDC Version, Type C (Rows A & C Filled) 3695 Series product from 3M Interconnect Solutions Division, such as compatibility with DIN 41612 Type C sockets, high density (64 positions), optional strain relief, daisy-chaining or end termination to flat cable, etc.
The 3695 Series Europlug is a .100" x .200" IDC connector, Type C (Rows A & C filled), compatible with DIN 41612 Type C sockets and offering a high‑density 64‑position layout. Optional strain relief and mounting holes allow secure board attachment, and the part can be daisy‑chained or end‑terminated to flat cable.
Key specifications include a glass‑filled polyester (PBT) insulation (UL 94V‑0), beryllium‑copper (C172) contacts plated with nickel (Class 2) and gold (MIL‑G‑45204, Type II, Grade C), a 1 A current rating, 1 × 10⁹ Ω insulation resistance at 500 VDC, 1000 Vrms withstanding voltage, and an operating temperature range of 55 °C to +125 °C. The connector accommodates 26‑28 AWG stranded or solid wire and 30 AWG solid wire.
| Connector type | .100" x .200" IDC Version, Type C (Rows A & C Filled) |
|---|---|
| DIN compatibility | DIN 41612 compatible, mates with DIN 41612 Type C sockets |
| Positions | 64 position (high density) |
| Insulation material | Glass Filled Polyester (PBT) |
| Flammability rating | UL 94V‑0 |
| Contact material | Beryllium Copper (C172) |
| Plating | Nickel (Class 2) and Gold (MIL‑G‑45204, Type II, Grade C) |
| Insulation resistance | 1 × 10⁹ Ω at 500 VDC |
| Withstanding voltage | 1000 Vrms at sea level |
| Temperature rating | 55 °C to +125 °C |
| Wire accommodation | 26‑28 AWG stranded or solid, 30 AWG solid |
The insulation is made of glass‑filled polyester (PBT).
