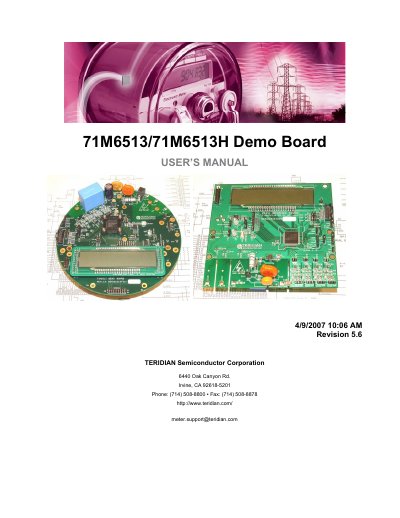

71M6513/71M6513H 3-Phase Energy Meter IC DEMO BOARD USER’S MANUAL
The 71M6513/71M6513H Demo Board is a demonstration platform for evaluating Teridian’s 3‑phase energy‑meter ICs. It includes the IC, peripheral circuits, a debug board, and accessories for measuring voltage and current in power‑metering applications.
The manual covers safety and ESD precautions, hardware specifications, demo kit contents, board versions, power‑supply and serial‑connection setup, the serial command language, calibration procedures, and testing methods. It also provides pin‑out details, schematic information, and a list of useful CLI commands for developers.
| PCB Diameter | 6.5 in (165.1 mm) |
|---|---|
| Operating Temperature | -40 °C to +85 °C |
| DC Input Voltage | 5 V DC ±0.5 V |
| Supply Current | 25 mA typical |
| Voltage Measurement Range | 120 V to 700 V rms |
| Current Input Termination | 1.7 Ω for 2,000:1 CT (200 A) |
