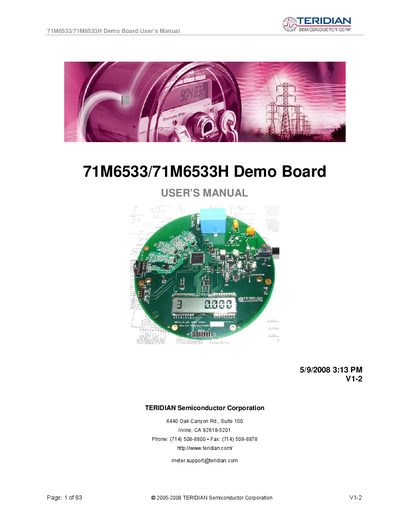

This document is the user manual of 71M6533/71M6533H Demo Board
This manual describes the Teridian D6533T14A3 demo board that incorporates the 71M6533 or 71M6533H integrated circuit, a serial EEPROM, emulator port, and on‑board power supply. It covers hardware description, safety and ESD precautions, demo kit contents, and detailed calibration procedures for 3‑phase power metering applications.
The document also lists required equipment for functional testing, such as a Windows PC with RS‑232 port, power adapters, and serial cable, and provides schematics, bill of materials, pin‑out information, and revision history for developers and technicians.
| Integrated Circuit | 71M6533/71M6533H |
|---|---|
| Demo Board Version | D6533T14A3 |
| Chip Revision | AO3 |
| Demo Kit Firmware Revision | 4.p6b or later |
| Power Supply (included) | Two 5VDC/1,000 mA universal wall transformers |
It applies to the 71M6533 or 71M6533H chip revision AO3.
The demo kit firmware must be revision 4.p6b or later.
