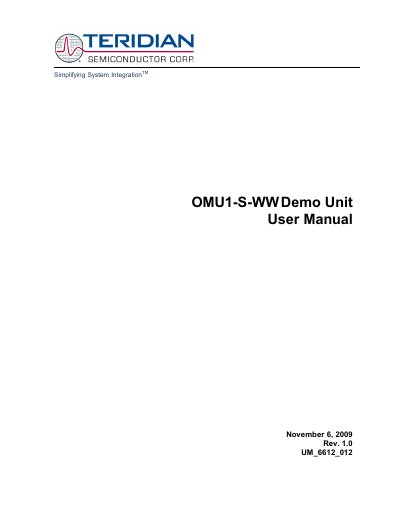

The OMU1-S-WW Demo Unit is a low‑cost, single‑phase power monitor that uses the Teridian 78M6612 SOC to measure voltage, current, power, and energy for one outlet. The unit connects to a PC via an isolated USB interface that provides both serial communication and DC power.
The manual guides users through driver installation, COM‑port configuration, GUI operation, and exporting measurement data to Excel. It also includes ordering information, safety notes, and contact details for Teridian Semiconductor Corporation.
| Measurement IC | single‑phase power and energy measurement IC supporting up to two outlets |
|---|---|
| USB Controller | FTDI FT232RL |
Connect the module to the PC; the Found New Hardware Wizard will launch and install the driver. If the driver files are not found, locate them in the FTDI USB Driver and Utilities folder on the CD.
Set the port speed to 38400 baud, data bits to 8, parity to None, stop bits to 1, and flow control to Xon/Xoff.
