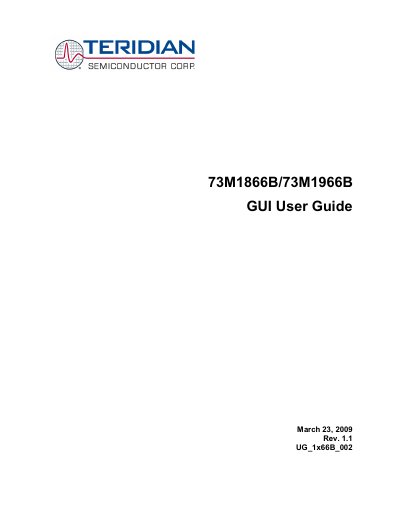

This document is the 73M1866B/73M1966B GUI User Guide, which introduces the GUI installation and usage methods of the product, as well as the control methods for various registers.
The Graphical User Interface (GUI) provides control of the 73M1866B and 73M1966B registers for demo and keychain boards. It allows users to configure registers, read status conditions, and manage scripts for repeated configurations.
The guide covers installation of the GUI software on a Windows PC, detailed usage of the register‑access screen, scripting functions, and related documentation. It also includes troubleshooting tips and contact information for further support.
| Required disk space | 1 MB |
|---|---|
| GUI software version | 1.3 |
Load the GUI from the CD, run Teridian_73M1966_1_3_SETUP.EXE, and follow the on‑screen prompts to complete the installation.
Press the Write Red button to write all values that are highlighted in red; they will turn black after being written.
