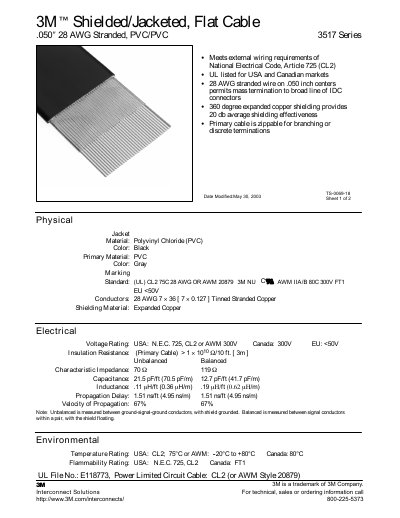

3M 3517 Series Shielded/Jacketed, Flat Cable is a flat cable produced by 3M Company. This cable meets the external wiring requirements of National Electrical Code, Article 725 (CL2) and is UL listed for USA and Canadian markets. The cable has 28AWG conductors with a 0.050 inch spacing, which can be mass terminated to a broad line of IDC connectors. The 360 degree expanded copper shielding provides 20dB of average shielding effectiveness, and the primary cable can be zipped for branching or discrete terminations.
The 3M 3517 Series is a .050" (12.7 mm) flat cable with 28 AWG stranded copper conductors and a PVC jacket. It provides 20 dB average shielding effectiveness and is UL listed for U.S. and Canadian markets, complying with NEC Article 725 (CL2) wiring requirements.
Technical data include capacitance, inductance, propagation delay, voltage rating, temperature range, and standard roll length. Ordering information and warranty terms are also provided.
| Cable size | .050" |
|---|---|
| Conductor gauge | 28 AWG |
| Shielding effectiveness | 20 dB average |
| NEC compliance | Article 725 (CL2) |
| Capacitance (unbalanced) | 21.5 pF/ft |
| Capacitance (balanced) | 12.7 pF/ft |
| Inductance (unbalanced) | 0.11 µH/ft |
| Inductance (balanced) | 0.19 µH/ft |
| Propagation delay | 1.51 ns/ft |
| Temperature rating | -20 °C to +80 °C |
| Standard roll length | 100 ft |
| Warranty period | 1 year from purchase |
It meets the external wiring requirements of National Electrical Code Article 725 (CL2).
The standard length is 100 ft per roll.
The product is warranted to be free from defects for 1 year from the date of purchase.
It provides an average shielding effectiveness of 20 dB.
