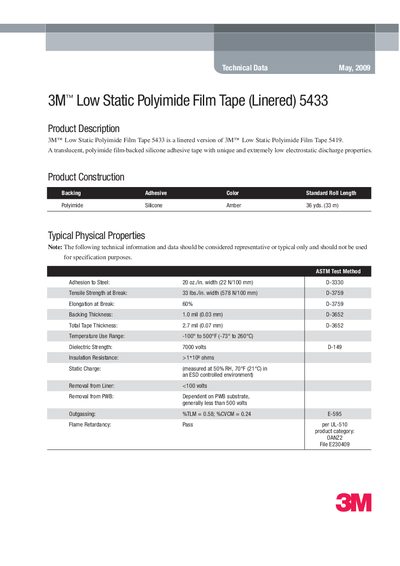

3M™ Low Static Polyimide Film Tape (Linered) 5433 is a linered version of 3M™ Low Static Polyimide Film Tape 5419. It is a translucent, polyimide film-backed silicone adhesive tape with unique and extremely low electrostatic discharge properties.
The 3M 5433 Low Static Polyimide Film Tape (Linered) is a translucent, polyimide‑film backed silicone adhesive tape offering extremely low electrostatic discharge. It is designed for use as a mask during wave soldering, as a release surface for high‑temperature processes, and for other PCB handling applications.
The tape is supplied in 36‑yard rolls, stored at 60°‑80°F (16°‑27°C) and 40‑50% RH, and has a shelf life of 12 months from the date of manufacture. It meets RoHS requirements and is flame‑retardant per UL‑510. Safety and regulatory information, as well as contact details for 3M Electronics Markets Materials Division, are provided.
| Adhesion to Steel | 20 oz./in. width (22 N/100 mm) |
|---|---|
| Tensile Strength at Break | 33 Ibs./in. width (578 N/100 mm) |
| Elongation at Break | 60% |
| Backing Thickness | 1.0 mil (0.03 mm) |
| Temperature Use Range | -100° to 500°F (-73° to 260°C) |
| Dielectric Strength | 7000 volts |
The tape can be used from -100°F to 500°F (-73°C to 260°C).
Yes, the tape complies with the EU RoHS directives (2002/95/EC and 2005/618/EC).
The dielectric strength is 7000 volts.
