This product is a 3M 4600 series plug that uses glass filled polyester (PBT) as the insulation material. It has a UL 94V-0 flammability rating and can accept 26 and 28 AWG solid or stranded wire. The product has a rated current of 1A, an insulation resistance of more than 1 x 109 Ω, and an rated voltage of 1000 Vrms. The environmental temperature range is -55°C to +105°C.

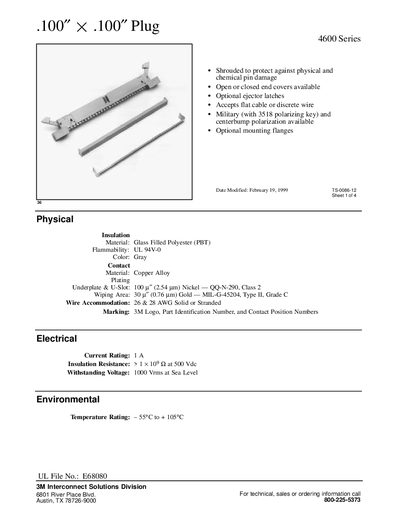

The 3M 4600 Series .100" x .100" plug is a shrouded connector designed for flat cable or discrete wire applications. It offers optional open or closed end covers, ejector/latch systems, mounting flanges, and various polarization options.
Key features include a glass‑filled polyester (PBT) insulation, copper alloy contacts with nickel and gold plating, a 1 A current rating, >1 × 10⁹ Ω insulation resistance at 500 VDC, and a temperature range of –55 °C to +105 °C.
| Insulation Material | Glass Filled Polyester (PBT) |
|---|---|
| Flammability | UL 94V-0 |
| Contact Material | Copper Alloy |
| Plating (U‑Slot) | Nickel |
| Plating (Wiping Area) | Gold |
| Current Rating | 1 A |
| Withstanding Voltage | 1000 Vrms at Sea Level |
| Temperature Rating | –55 °C to +105 °C |
| UL File No. | E68080 |
The plug is rated for a continuous current of 1 A.
It can operate from –55 °C up to +105 °C.
The insulation is made of glass‑filled polyester (PBT).
