14H26-SZ3X-XXX-03C is a 3M interconnect solution that features a 0.050” right-angle digital camera cable with 3 shielded quads with drains and 5 unshielded twisted pairs. The cable is used for machine vision camera to frame grabber communications in applications where full CameraLink™ configuration is not necessary. The entire cable bundle is shielded with foil and braid for additional signal protection.
The Mini D Ribbon (MDR) cable assembly provides a rugged .050" right‑angle digital camera connection for machine‑vision cameras to frame grabbers. It features a 26‑position connector, shielded quads, unshielded twisted pairs, and an EMI‑shielded junction shell for reliable signal transmission.

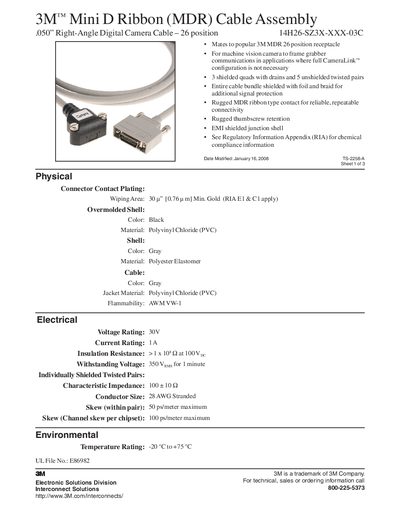

The datasheet lists electrical ratings such as 30 V voltage, 28 AWG stranded conductors, 50 ps/m characteristic impedance, and a temperature range of –20 °C to +75 °C. Regulatory compliance information, wiring charts, length codes, and ordering details are also included.
| Withstanding Voltage | 350 V·ms for 1 minute |
|---|---|
| Conductor Size | 28 AWG Stranded |
| Characteristic Impedance | 50 ps/meter maximum |
| Skew (within pair) | 100 ps/meter maximum |
| Temperature Rating | -20 °C to +75 °C |
| Flammability | AWM VW‑1 |
| Connector Contact Plating | Min. Gold (RIA El & Cl apply) |
It can be used from –20 °C up to +75 °C.
The connector provides 26 positions.
