The Scotchlok 972 is a self‑stripping in‑line fuse holder designed for use with 18‑14 AWG solid or stranded copper conductors. It is intended for applications where a fuse must be securely connected to a power source and device, with a blue‑colored polypropylene insulated body.

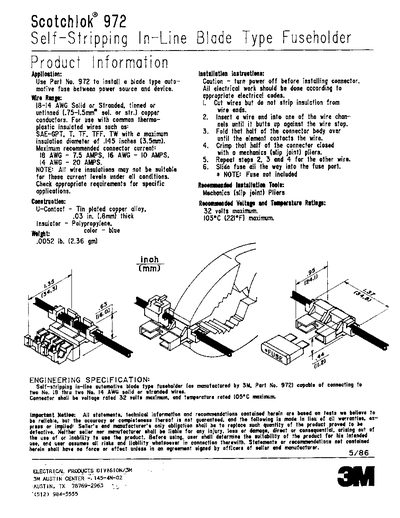

The document lists engineering specifications such as maximum current per wire gauge, a 32 V voltage rating, and a 105 °C temperature limit, and provides step‑by‑step installation instructions. It also notes that the fuse itself is not supplied and recommends using slip‑joint pliers for crimping.
| Maximum current for 14 AWG wire | 20 A |
|---|
