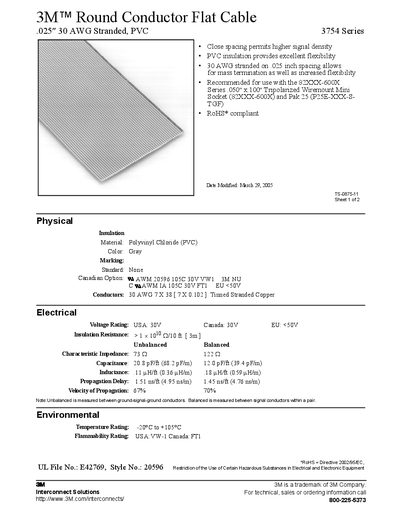

3M 3754 series round conductor flat cable has a 0.025 inch 30 AWG stranded and PVC insulated construction with gray appearance. This cable is rated for 30V and meets the RoHS standard requirements.
The 3M™ Round Conductor Flat Cable (3754 Series) features 0.025" spacing with 30 AWG stranded, tinned copper conductors and PVC insulation for excellent flexibility and mass termination. Close spacing permits higher signal density and the cable is RoHS compliant.
It is rated for 30 V (USA/Canada) and <50 V (EU), with a characteristic impedance of 73 Ω (unbalanced) or 122 Ω (balanced). The cable operates from –20 °C to +105 °C, meets VW‑1/FT1 flammability standards, and is supplied in standard 300‑ft lengths. Ordering information and technical support are available through 3M Interconnect Solutions.
| Conductor size | 0.025" spacing, 30 AWG stranded |
|---|---|
| Insulation material | Polyvinyl Chloride (PVC) |
| Voltage rating | USA: 30 V, Canada: 30 V, EU: <50 V |
| Capacitance | 20.8 pF/ft (68.2 pF/m) |
| Propagation delay | 1.51 ns/ft (4.95 ns/m) |
| Velocity of propagation | 67 % (unbalanced), 70 % (balanced) |
| Temperature rating | -20 °C to +105 °C |
| Flammability rating | USA: VW‑1, Canada: FT1 |
| RoHS compliance | Yes |
It is rated for 30 V in the USA and Canada, and less than 50 V in the EU.
Yes, the cable is RoHS compliant.
The cable can be used from –20 °C up to +105 °C.
