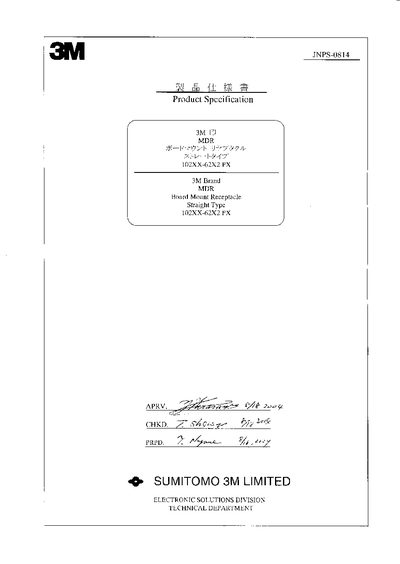

This document describes the functions, compatible objects, related specification drawings, related test standards, applications, quality performance, and plating specification indication of the JNPS-0814i connector.
The JNPS-0814 is a 3M MDR board‑mount receptacle straight‑type connector. It features a 1.27 mm contact pitch, two rows of female contacts, and can be mounted on a PCB with a screw‑lock retention feature. The connector is available with various plating options (PL, PE, PC) and supports standard MDR plug mating.
The document provides detailed electrical, mechanical, and environmental specifications, including voltage ratings, temperature range, and compliance with MIL‑STD‑202 test standards. Packaging, storage conditions, and recommended handling are also described.
| Contact pitch | 1.27 mm |
|---|---|
| Contact rows | 2 rows of female contacts |
| Voltage rating | AC 150 V Max / DC 200 V Max |
| Operating temperature range | -55 °C ~ 85 °C |
| Plating option PL | under Nickel plating, Gold 0.2 µm min |
| Retention feature | Screw lock (M2.6) for PC board |
| Environmental test – Moisture | -10 °C ~ 65 °C, 95 % RH, 10 cycles |
| Test standard | MIL‑STD‑202 |
The connector has a contact pitch of 1.27 mm.
It is rated for up to 150 V AC and 200 V DC.
The connector is tested for moisture, salt spray, thermal shock, humidity, thermal life, HS gas, vibration, and mechanical shock according to MIL‑STD‑202.
It is mounted with a screw‑lock retention feature, typically using an M2.6 screw.
