This document introduces 3M's static control hardware, tapes, and training grounding systems and cords for the electronic specialty markets. It includes the 3M Workstation Product - Grounding System 3048, which easily snaps onto mats and runners to ground two single conductor wrist straps. It comes complete with a ring connector and a 15 ft. (4.6 m) ground cord. The ground cord has a 1 megohm resistor for mat connection only.

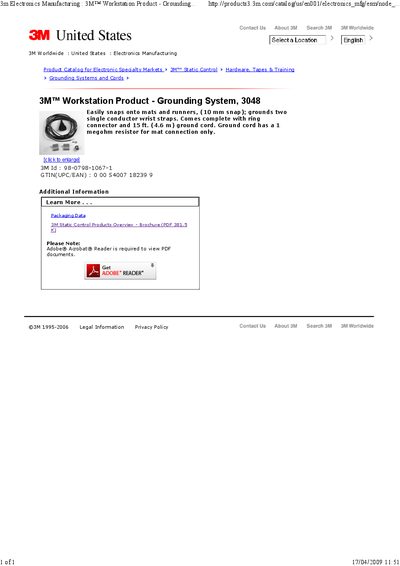

The 3M™ Workstation Product – Grounding System, model 3048, easily snaps onto mats and runners with a 10 mm snap and grounds two single‑conductor wrist straps. It comes complete with a ring connector and a 15 ft (4.6 m) ground cord that includes a 1 MΩ resistor for mat connection only.
Additional information includes the 3M Id (98‑0798‑1067‑1) and GTIN (0 00 54007 18239 9). Packaging data and a broader 3M Static Control Products Overview brochure are also referenced.
| Snap size | 10 mm |
|---|---|
| Grounded wrist straps | Two single‑conductor wrist straps |
| Ground cord length | 15 ft (4.6 m) |
| Ground cord resistor | 1 megohm (for mat connection only) |
| 3M Id | 98-0798-1067-1 |
| GTIN | 0 00 54007 18239 9 |
The ground cord is 15 ft (4.6 m) long.
The ground cord includes a 1 megohm resistor for mat connection only.
