This document is the BOM for PMO19401 module, including screen, controller, connector and other information.

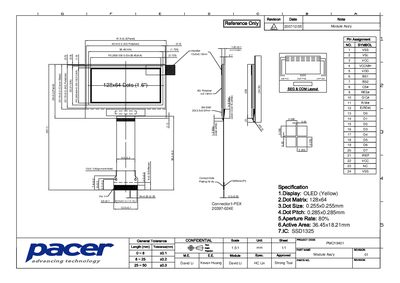

This document provides the electrical pin assignment, mechanical dimensions, and display specifications for the PMO19401 OLED module. It includes detailed information on connector layout, voltage pins, and reference designations.
Key characteristics such as display type, resolution, dot size, and active area are listed, along with the driver IC used (SSD1325). The sheet also contains tolerance data and project code references for manufacturing.
| Display type | OLED (Yellow) |
|---|---|
| Resolution | 128 x 64 dots |
| Dot size | 0.255 x 0.255 mm |
| Dot pitch | 0.285 x 0.285 mm |
| Aperture rate | 80% |
| Active area | 36.45 x 18.21 mm |
| Driver IC | SSD1325 |
It uses an OLED display with a yellow color.
The module has a 128 × 64 dot matrix.
The driver IC is the SSD1325.
