The CNY17X, CNY17FX, MOC810X phototransistor optocouplers features include white package options, UL recognition, VDE recognition, high BV CEO, low parasitic capacitance, and closely matched current transfer ratio (CTR)

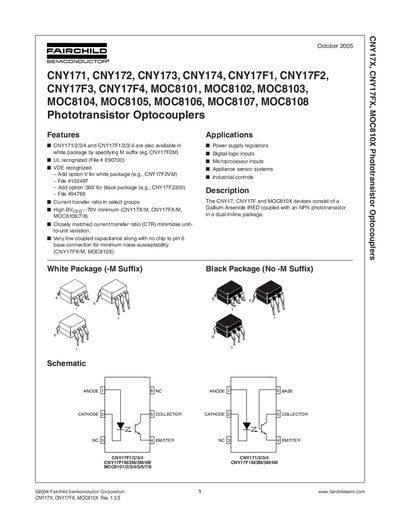

This datasheet provides detailed electrical characteristics, absolute maximum ratings, and application information for the CNY17X, CNY17FX and MOC810X series of phototransistor optocouplers. The devices are offered in black and white (‑M suffix) packages and are UL and VDE recognized.
Key sections include features, temperature limits, power dissipation, current transfer ratio, isolation specifications, and marking information. The document also contains typical transfer‑characteristic curves and notes on design considerations.
| Storage Temperature | -40 to +150 °C |
|---|---|
| Operating Temperature | -40 to +100 °C |
| Total Device Power Dissipation (25 °C) | 250 mW |
| Continuous Forward Current (Emitter) | 60 mA |
| Reverse Voltage (Emitter) | 6 V |
| Collector‑Emitter Voltage (CNY17X/M, CNY17FX/M) | 70 V |
| Capacitance (1 MHz) | 18 pF |
| Isolation Resistance | 500 VDC |
The devices can be stored from –40 °C up to +150 °C.
The continuous forward current rating is 60 mA.
