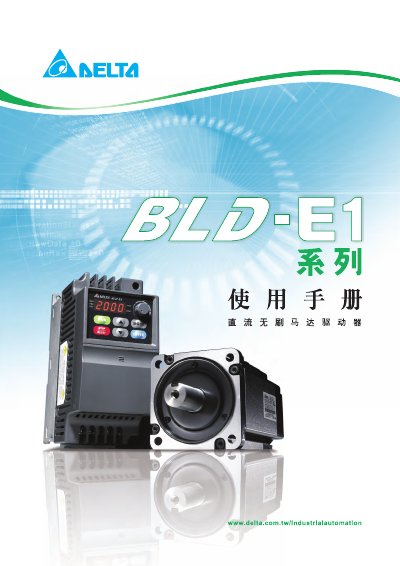

This manual provides information on the installation, parameter setting, fault diagnosis, troubleshooting and daily maintenance of Delta BLD-E1 series brushless DC motor drives.
This manual explains safe installation, wiring, and operation of the Delta BLD‑E1 series brushless motor driver. It emphasizes hazard warnings, proper grounding, and the need for qualified personnel during setup and maintenance.
The document is organized into sections covering installation and use, wiring diagrams, panel operation, parameter configuration, fault diagnosis, protection checks, and appendices with accessory selection and technical specifications. This manual is written in Chinese.
| Rated Power | 1HP / 0.75kW |
|---|---|
| Input Voltage | 3PH 200‑240V 50/60Hz 5.1A |
| Output Voltage | 3PH 0‑240V 4.2A 1.6kVA |
The manual requires power to be off during wiring, static protection for CMOS ICs, proper grounding, and that only qualified motor engineers perform installation and adjustments.
The RFI short circuit should only be disconnected when the main power is off; it must remain connected for grounded power systems and cannot be cut while the power is on.
