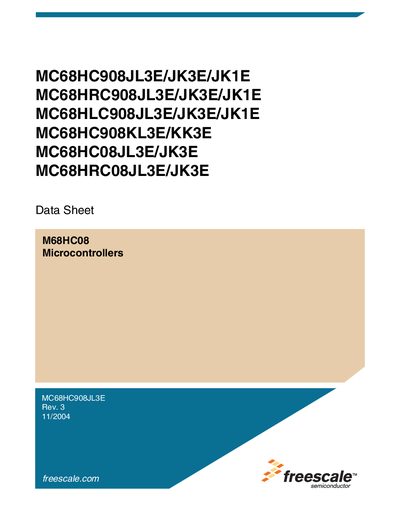

FREESCALE MC68HC908JL3E/JK3E/JK1E MC68HRC908JL3E/JK3E/JK1E Manual

About this manual

The MC68HC908JL3E family data sheet, revision 3 (November 2004), describes the Freescale 8‑bit microcontroller series. It includes a general description, block diagram, pin assignments, and functional overviews of the CPU, memory, and peripheral modules.

The document also contains detailed electrical and mechanical specifications, ordering information, and revision history. Contact information for Freescale technical support worldwide is provided at the end of the sheet.

What's inside

• General Description
• Memory
• Configuration Registers (CONFIG)
• Central Processor Unit (CPU)
• System Integration Module (SIM)
• Oscillator (OSC)
• Monitor ROM (MON)
• Timer Interface Module (TIM)
• Analog‑to‑Digital Converter (ADC)
• Input/Output (I/O) Ports

Frequently asked questions

What revision and date does the MC68HC908JL3E datasheet have?

The datasheet is revision 3, dated November 2004.

How can I contact Freescale technical support for the MC68HC908JL3E?

Support can be reached via email at [email protected], by phone (US +1‑800‑521‑6274 or +1‑480‑768‑2130), or through regional offices listed in the document.
