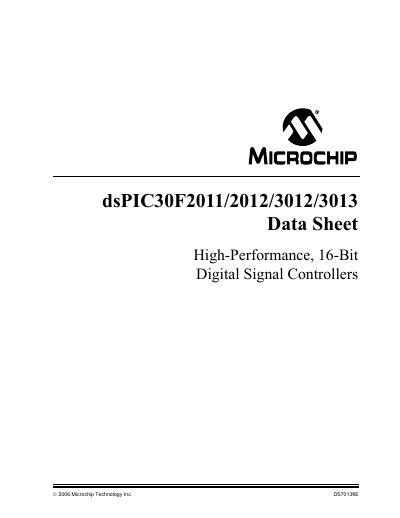

dsPIC30F2011/2012/3012/3013 is a high-performance 16-bit digital signal controller from Microchip Technology
The dsPIC30F2011/2012/3012/3013 family are high‑performance 16‑bit digital signal controllers with a modified Harvard architecture, up to 30 MIPS operation and a flexible peripheral set. They include on‑chip Flash, RAM, EEPROM, ADC, timers, UART, SPI and other modules suitable for embedded control and signal‑processing applications.
The datasheet provides detailed information on CPU architecture, memory organization, peripheral features, electrical characteristics, packaging options and programming resources. It also lists the device’s pin configurations for various package types such as 28‑pin PDIP, QFN and 44‑pin QFN.
| Flash program memory | Up to 24 KB |
|---|---|
| Data RAM | Up to 2 KB |
| Data EEPROM | Up to 1 KB |
| CPU performance | Up to 30 MIPS |
| External clock input | DC to 40 MHz |
| Oscillator input with PLL | 4 MHz‑10 MHz (4×, 8×, 16×) |
| Interrupt sources | Up to 21 |
| ADC resolution | 12‑bit |
| ADC conversion rate | 200 ksps |
| I/O pin drive capability | 25 mA sink/source |
| Operating voltage range | 2.5 V to 5.5 V |
The device provides up to 24 KB of on‑chip Flash program memory.
It supports up to 21 interrupt sources with 8 user‑selectable priority levels.
The controller includes a 12‑bit ADC capable of 200 ksps conversion rate and up to 10 input channels.
It operates from 2.5 V up to 5.5 V, covering industrial temperature ranges.
