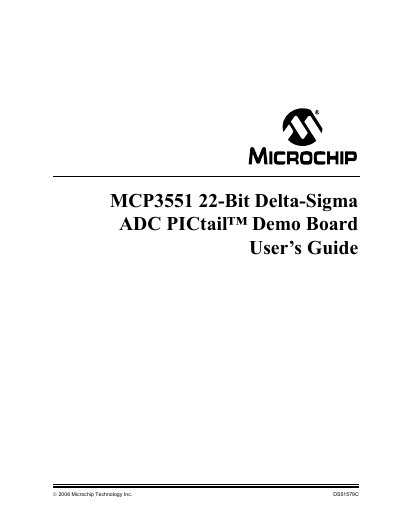

This document is the User's Guide for the Microchip Technology Inc. DS51579C MCP3551 22-Bit Delta-Sigma ADC PICtail™ Demo Board. It provides instructions and information about the features of the MCP3551 22-Bit Delta-Sigma ADC PICtail™ demo board.
The Microchip MCP3551 PICtail Demo Board is a development tool that lets system designers evaluate the MCP3551 22‑Bit Delta‑Sigma ADC in a low‑noise environment. The guide provides a product overview, describes what the kit includes, and explains how to get started with the board and its accompanying DataView software.
The manual also contains detailed schematics, layout diagrams, a complete bill of materials, and worldwide sales and service information, helping engineers integrate the board into their designs and order replacement parts if needed.
| ADC resolution | 22‑Bit |
|---|---|
| ADC type | Delta‑Sigma |
| Demo board purpose | Evaluate operation of the MCP3551 ADC |
It allows the system designer to evaluate the operation of the MCP3551 22‑Bit Delta‑Sigma ADC.
The latest documentation is available on Microchip’s website at www.microchip.com.
