MICROCHIP dsPIC30F2011 dsPIC30F2012 dsPIC30F3012 dsPIC30F3013 Data Sheet Manual

DS70139C is the Microchip's dsPIC30F2011, dsPIC30F2012, dsPIC30F3012, dsPIC30F3013 data sheet

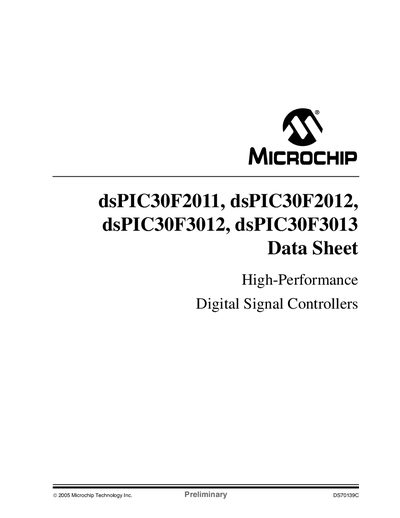

MICROCHIP dsPIC30F2011 dsPIC30F2012 dsPIC30F3012 dsPIC30F3013 Data Sheet Manual - cover page
Brand
MICROCHIP
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
206
File format
PDF
File size
3.2 MB
Published
06 April, 2012
Updated
30 September, 2023
MD5 checksum
1D30D522009A1E04A1754B828B423F7F

About this manual

The dsPIC30F2011/2012/3012/3013 family are high‑performance 16‑bit digital signal controllers featuring a modified Harvard architecture, up to 30 MIPS, and a rich set of peripherals. The datasheet summarizes key CPU, DSP, analog, and peripheral capabilities, and provides pin‑out diagrams for various package options.

Detailed information includes flash and EEPROM memory sizes, clock options, ADC performance, timer modules, UARTs, SPI, and code‑protection features, as well as ordering information and worldwide sales contacts.

What's inside

  • High‑Performance Digital Signal Controllers
  • CPU Architecture
  • DSP Features
  • Peripheral Features
  • Analog Features
  • Special Microcontroller Features
  • Pin Diagrams
  • Product Identification System
  • Worldwide Sales and Service

Specifications

Flash program memoryUp to 24 KB
Data RAMUp to 2 KB
Data EEPROMUp to 1 KB
Maximum performanceUp to 30 MIPS
External clock input rangeDC to 40 MHz
ADC resolution12‑bit
ADC conversion rate100 kS/s
I/O pin current capability25 mA sink / 25 mA source
Timer modulesThree 16‑bit timers/counters (pairable to 32‑bit)
Interrupt sourcesUp to 21

Frequently asked questions

What is the maximum clock speed for the dsPIC30F series?

The devices support an external clock input up to 40 MHz.

How many analog input channels are available on the ADC?

The 12‑bit ADC provides up to 10 input channels.
