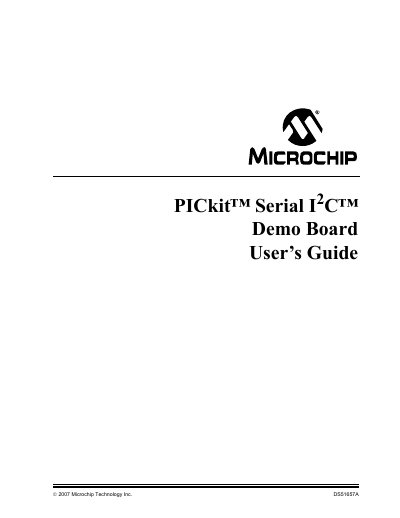

This is a user guide for the PICkit Serial I2C Demo Board DS51657A.
The PICkit Serial I2C Demo Board is a Microchip development board that provides a serial I2C interface for programming and testing Microchip devices.
The manual includes a product overview, installation and operation instructions, schematics, a complete bill of materials, and worldwide sales and service contact information.
| Serial EEPROM memory size | 2 Kbits |
|---|---|
| A/D converter resolution | 12‑bit |
| D/A converter resolution | 10‑bit |
| I/O expander interface | 8‑bit serial |
The kit includes the demo board itself and the components listed in the "What The PICkit Serial I2C Demo Board Kit Includes" section.
The complete bill of materials is provided in Appendix B of the manual.
Technical support is available through Microchip’s website at http://support.microchip.com.
