The IPW90R340C3 CoolMOS™ power transistor features the lowest RON x Qg, extreme dv/dt rating and high peak current capability. It is qualified according to JEDEC1) for target applications, and is lead-free lead plated, RoHS compliant.

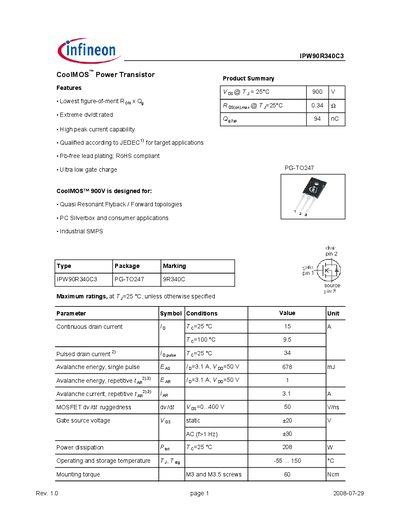

The Infineon IPW90R340C3 CoolMOS power transistor is a 900 V, low‑on‑resistance device designed for high‑frequency SMPS, quasi‑resonant flyback/forward topologies, and industrial applications. The document provides detailed electrical, thermal, and dynamic characteristics, along with typical performance curves.
Key sections include product summary, maximum ratings, thermal resistance, static and dynamic electrical parameters, gate‑charge data, reverse‑diode behavior, and mechanical dimensions. Legal and safety notices are also included at the end of the document.
| Continuous drain current (Id) | 15 A @ 25 °C |
|---|---|
| Pulsed drain current (Id,pulse) | 34 A @ 25 °C |
| Maximum power dissipation (Pd) | 208 W @ 25 °C |
| Drain‑source on‑state resistance (Rds(on)) | 0.28 Ω typ @ 25 °C, 0.76 Ω typ @ 150 °C |
| Package | TO‑247 |
The device can handle a continuous drain current of 15 A at 25 °C.
The maximum power dissipation is 208 W at 25 °C.
It is supplied in a TO‑247 package.
