C.A780G X5 Ver1.4/C.A780G X3 Ver1.4 motherboard is powered by AMD RS780+SB700 chipset, integrated with entry-level DX10 graphics core HD 3200, support north bridge buffer memory (LFB) technology, can let the integrated graphics core have dedicated video memory, and provide VGA, DVI, HDMI and other rich output choices.

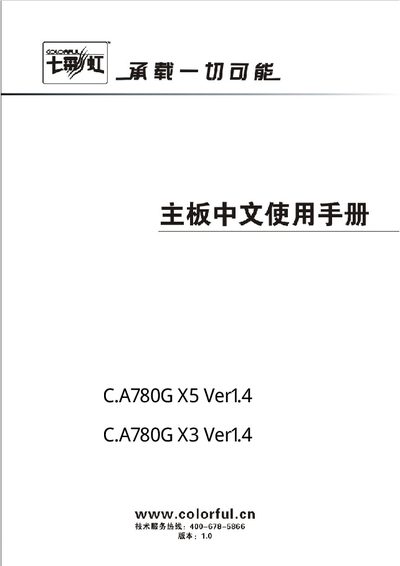

This manual covers the C.A780G X5 and C.A780G X3 ATX motherboards, detailing the contents of the packaging, BIOS interface, system overview, and advanced configuration options such as over‑clocking and power management. It also lists the connectors, jumpers, and component layout diagrams to help users install and configure the board.
Technical specifications, including supported CPUs, memory types, expansion slots, storage interfaces, networking, and audio features are provided, along with contact information for Colorful technical support and service centers across China. This manual is written in Chinese.
| Form factor | ATX |
|---|---|
| Chipset | AMD RS780+ / SB700 |
| CPU socket | AM2+ |
| Memory slots | 4 DDR2 DIMM slots, dual‑channel up to DDR2‑1066 |
| PCI Express x1 slots | 1 |
| PCI slots | 2 |
| SATA ports | 6 |
| IDE ports | 1 |
| Video outputs | 1 DVI, 1 HDMI, 1 VGA |
| USB 2.0 ports | 8 (4 expandable) |
| Network | Integrated Gigabit Ethernet (10/100/1000 Mbps) |
| Audio | 8‑channel audio codec |
The package contains the C.A780G X5/X3 motherboard, a SATA data cable, a SATA power adapter, an IDE ribbon cable, a driver CD, a warranty card, and the Chinese user manual.
It provides six SATA ports.
