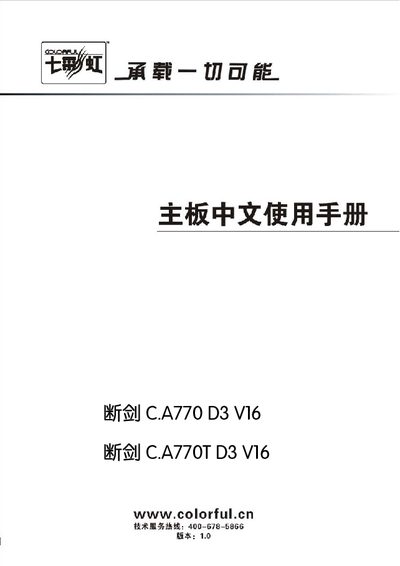

The user manual of 断剑 C.A770 D3 V16 断剑 C.A770T D3 V16, which mainly introduces the hardware installation, driver installation, and BIOS settings of the product.
This manual provides step‑by‑step instructions for installing the Colorful C.A770 D3 V16 and C.A770T D3 V16 ATX motherboards, including hardware setup, driver installation, and BIOS configuration. It also lists the standard accessories supplied with the board and safety precautions for handling components.
Detailed sections cover the motherboard layout, expansion slot usage, power‑supply requirements, and BIOS update procedures. Technical specifications such as chipset, CPU socket, memory support, and I/O interfaces are summarized for quick reference. This manual is written in Chinese.
| Chipset | AMD RX780+SB710/SB700 |
|---|---|
| Memory Slots | 2 DDR3 slots, dual‑channel DDR3 1333/1066 MHz |
| Storage Interfaces | 1 IDE, 1 FDD, 6 SATA II, 1 eSATA |
| Audio | 8‑channel high‑definition audio controller |
| Network | Integrated 10/100/1000 Mbps Ethernet |
| USB Ports | 10 USB 2.0 ports (4 require expansion) |
| Form Factor | ATX |
Short pins 2‑3 of the JCMOS1 jumper to clear the CMOS data.
