The C.NC65-K motherboard from Colorful adopts an mATX form factor and supports AMD Socket AM2 AMD Athlon 64 FX/Athlon 64/Sempron CPUs, HyperTransport 1GHz, and DDR2 533/DDR2 667/DDR2 800 standard memory.

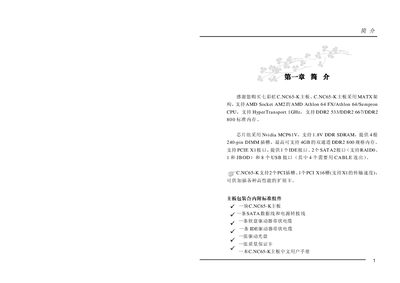

This manual describes the Colorful C.NC65-K motherboard, which uses an AMD Socket AM2 and supports AMD Athlon 64 FX, Athlon 64 and Sempron CPUs. It details the supported memory types (DDR2‑533/667/800) and the maximum 4 GB dual‑channel capacity, as well as the layout of the board’s connectors, including IDE, SATA2, USB, and Ethernet ports.
The document also covers hardware installation, CMOS clearing, BIOS update procedures, and the functions of front‑panel and rear‑panel connectors. Reference tables list the chipset (NVIDIA MCP61V), audio codec (Realtek ALC880), and other integrated components, helping users configure and troubleshoot the system. This manual is written in Chinese.
| CPU socket | AMD Socket AM2 |
|---|---|
| DIMM slots | 4 × 240‑pin DDR2 slots |
| IDE ports | 1 × IDE |
| SATA2 ports | 2 × SATA2 (RAID0/1/JBOD) |
| USB ports | 8 × USB 2.0 |
| Chipset | NVIDIA MCP61V |
It uses an AMD Socket AM2 compatible with AMD Athlon 64 FX, Athlon 64 and Sempron processors.
The board provides four 240‑pin DDR2 slots supporting up to 4 GB of dual‑channel memory.
It includes one IDE connector, two SATA2 ports (with RAID 0/1/JBOD support), and eight USB 2.0 ports.
