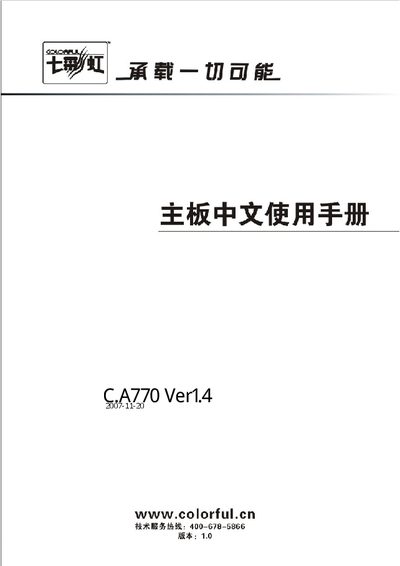

This document introduces the hardware installation, driver installation instructions, BIOS settings, and appendix of the C.A770 Ver1.4 motherboard from Colorful brand. The motherboard adopts the AMD 770+SB600 chipset, supports Phenom processors and PCI-E 2.0 specifications, and has features such as dual-channel DDR2 800 memory and 8-channel audio chip.
This manual guides users through the setup and configuration of the Colorful C.A770 motherboard. It includes sections on hardware installation, driver installation, BIOS and advanced BIOS settings, power management, and troubleshooting.
The document also lists the motherboard's specifications, such as the AMD 770+ SB600 chipset, AM2+ CPU socket, DDR2 memory support, expansion slots, and connectivity options, helping users understand the capabilities of the board. This manual is written in Chinese.
| Chipset | AMD 770+ SB600 |
|---|---|
| CPU Socket | AMD AM2+ (supports Phenom, Athlon, Sempron) |
| Memory | 4 × 240‑pin DDR2 slots, dual‑channel, 533/667/800 MHz, 18 V |
| SATA Ports | 4 × SATA2 (high‑speed) ports |
| USB Ports | 10 × USB 2.0 (5 ports expandable) |
| Ethernet | Integrated Gigabit LAN (10/100/1000 Mbps) |
| Audio | 8‑channel audio controller |
| Form Factor | ATX, 200 mm × 305 mm |
It provides ten USB 2.0 ports, with five of them available for expansion.
The board supports AMD AM2+ socket CPUs, including Phenom, Athlon 64, Athlon 64 X2, and Sempron processors.
Four SATA2 high‑speed ports are provided.
